Role of Road Studs In Enhancing Road Safety

May 09, 2025

Road safety is the cornerstone of the transportation system, which concerns the life and property of every traveler. According to the World Health Organization, about 1.35 million people die in road traffic accidents every year, and a large number of these accidents are closely related to the inadequacy of road safety facilities. Among the many road safety facilities, road studs, though seemingly small, play an indispensable role.

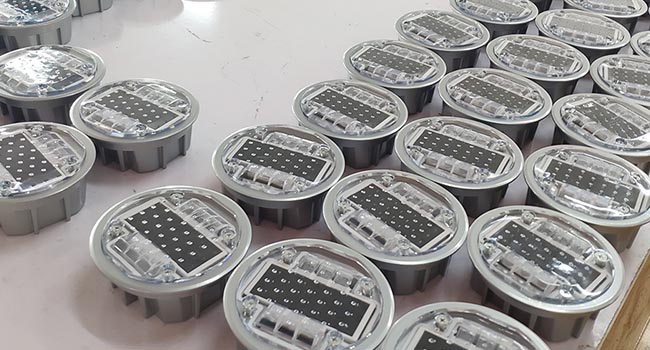

solar studs



How Road Studs Improve Road Safety



Increased Visibility



Road studs significantly increase road visibility and work on the principle of retro-reflection. When a vehicle's headlight hits a road stud, tiny prisms or glass beads inside the stud reflect the light back in the direction of the light source, allowing drivers to clearly see road markings, borders and obstacles.



In the night or fog, heavy rain, snowstorms and other adverse weather conditions, the role of the road Stud is particularly prominent. Under normal circumstances, road markings at night, the visible distance is limited, and after the installation of road studs, the visible distance can be significantly increased. For example, in foggy weather, the visible distance of road markings without Studs may be less than 30 meters, but with Studs, the visible distance can be increased to more than 60 meters, effectively assisting drivers to drive safely.



Lane Delineation



Lane delineation is one of the most important functions of road studs. Through continuous and obvious markings, the lane delineation clearly indicates the edge of the lane, which helps the driver to maintain the correct lane position during driving. On winding mountainous roads or poorly lit roads, accidents caused by lane shifting are frequent. The presence of road studs is like adding an “invisible guardrail” to the road. Studies have shown that the incidence of lane shifting accidents is reduced by about 30% on roads with Studs, greatly reducing the number of serious accidents such as head-on collisions.



Speed Management



Studs also play an important role in speed management. By marking lanes and road edges, pins provide a visual reference for drivers to determine whether they are traveling at a reasonable speed. In areas where the road line changes abruptly, such as sharp turns and steep slopes, the presence of pins can encourage drivers to slow down in advance. Relevant data shows that in the sharp curves with pins, the average speed of drivers is 15 - 20% lower than that of the road without pins, effectively preventing accidents such as rollover and running off the road caused by excessive speed.



Hazard Indication



Different colors of road studs have specific hazard marking functions, constituting a set of efficient color coding system. The common colors and functions of road studs are listed below:



Color

Marking Location

Hazard Warning Function

Red

Left edge of the road

Alerts drivers they are near the edge of the road and should stay cautious

Amber

Center divider of two-way lanes

Indicates central separation to prevent vehicles from entering the oncoming lane

Green

Inside tunnels or designated pedestrian areas

Guides pedestrians or vehicles through specific areas



Guidance In Adverse Conditions



In inclement weather, such as heavy rain, snowstorms and fog, road markings may be difficult to read due to water, snow or obstructed visibility. In this case, road studs become the only reliable road marking for drivers.For example, in heavy snowstorms, snow may completely cover the road markings, but the studs, with their protruding design and highly reflective properties, can still provide clear road guidance for drivers. Real-world examples have shown that the incidence of bad weather accidents has been reduced by about 25% on roadways where roadway Studs have been installed.

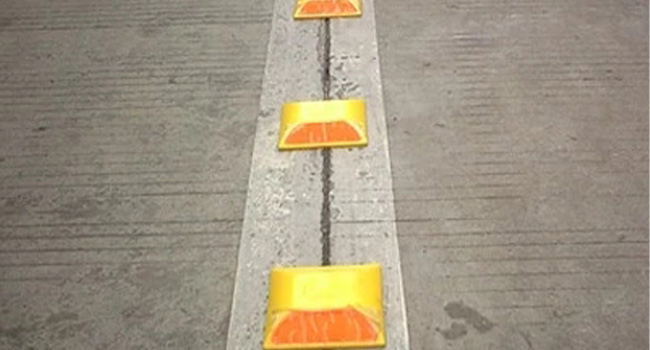

solar studs



How Road Reflectors Work



Retro-reflection



Retro-reflection is the core principle behind the reflective function of road studs. Tiny prisms or glass beads inside the studs reflect light back to the light source exactly where it came from, after multiple reflections. This special optical design allows the stud to act as a “mirror” at night or in low visibility conditions, reflecting vehicle lights back into the driver's eyes and significantly improving road visibility.



Comparison of Prismatic and Glass Bead Reflectors



Prismatic and glass bead reflectors are two common reflective structures for road studs, and they differ somewhat in principle and performance:



Reflector Type

Working Principle

Performance Features

Application Scenarios

Prism Type

Uses internal reflection of triangular prisms for precise light return

High reflectivity and good visibility over long distances

Highways, long straight road sections

Glass Bead Type

Refracts and reflects light through glass beads, providing wide light dispersion

Excellent close-range reflection, lower cost

Urban roads, low-speed areas



Different Types of Road Studs



Solar Road Studs



Solar Road Studs are a new type of solar powered road studs that are environmentally friendly and highly efficient. It absorbs sunlight through solar panels and converts the light energy into electricity that is stored in batteries and illuminated by internal LED lights.



The Solar Stud requires only a few hours of sunlight to recharge, and can work normally even in continuous cloudy and rainy days. The visibility distance of up to 900 meters is far greater than that of a normal Stud. In addition, solar Studs are used in local and national road safety programs because they are made of rugged materials and have a life expectancy of 5 - 8 years, which significantly reduces maintenance costs.

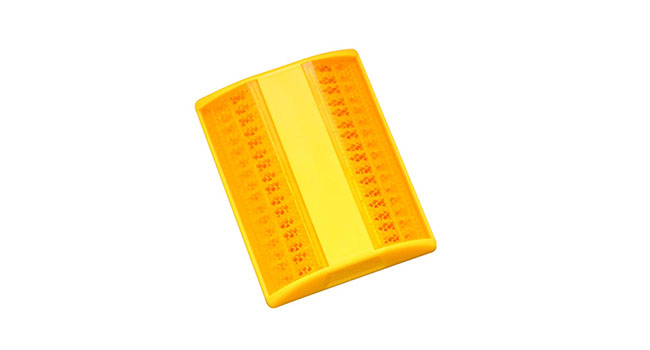

Surface Applied Road Studs



Surface Applied Road Studs are installed directly onto the road surface with a special glue or adhesive, making the installation process quick and easy. Equipped with a highly reflective lens and covered with a wear-resistant coating, these studs maintain their reflective properties in all weather conditions.Whether it is exposed to the sun, rainstorms or snow and ice, the surface-adhesive road studs can provide clear guidance for road users and ensure driving safety. It is suitable for road marking renewal and temporary construction.



Inset Road Studs



Inset Road Studs are made of cast iron with reflective parts embedded in them for high durability and stability. It can withstand the crushing of heavy vehicles and frequent traffic loads and is not easily damaged or displaced. On roads with high traffic flow and heavy vehicles, Reflective Road Studs provide a reliable guarantee of road safety thanks to their sturdy structure and constant and stable reflective effect, and are commonly used on highways, ports and terminals, and other important transportation hubs.



solar studs



Maintenance of Reflective Road Studs



Regular Inspection



Regular monthly inspections of road studs are essential to ensure that they work properly. Inspections include visible damage (e.g., cracks, breakage), surface discoloration, and dirt buildup. Damaged road studs should be replaced as soon as they are found to avoid safety hazards caused by failing road studs.



Solar Panel Maintenance



For solar road Studs, solar panel maintenance is crucial. Regularly clean the surface of the solar panel with a soft cloth and mild detergent to remove dust and dirt and ensure it can fully absorb sunlight. Avoid using rough cleaning tools to prevent scratching the surface of the solar panel and affecting the power generation efficiency.



LED Lamp Testing



Regularly test the working condition of the LED lights to ensure that all LED lights can light up properly at night. Faulty LEDs will reduce the visibility of the Stud and should be replaced as soon as they are found. Most Solar Studs have individually replaceable LED units, making them easy to replace.



Battery Performance Monitoring



Solar Studs usually use rechargeable batteries, the performance of which directly affects the working hours of the Stud. Regularly check the service life and capacity of the battery, when it is found that the battery has charging difficulties, shortened duration and other problems, the battery should be replaced in a timely manner to ensure the normal operation of the Stud.



Waterproof Treatment



Good waterproof performance is a prerequisite for the normal operation of the Stud in bad weather. Regularly check the waterproof sealing of the Stud, especially the sealing parts of the solar panel and battery compartment. If you find poor sealing or cracks, use waterproof sealant to repair in time to prevent rainwater from seeping in and damaging the internal electronic components.



Installation and Stability Check



Ensure that the Stud is firmly installed on the road surface to prevent it from becoming a new safety hazard due to loosening or shifting. Regularly check the installation of road studs, and for loose studs, re-fix them in time to ensure their normal function.



Alignment Monitoring



The correct alignment of the Stud directly affects its guiding effect. Regularly check the installation angle and position of the Stud to ensure that it can provide drivers with accurate road guidance. For misaligned pins, make timely adjustments to avoid misleading drivers.

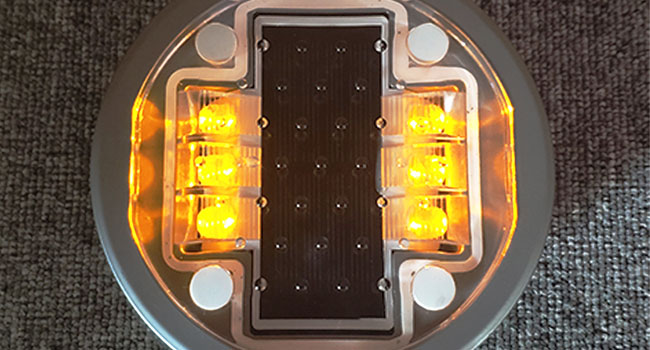

solar studs



Light Sensor Maintenance



Solar Studs are equipped with light sensors that automatically control the switching of LED lights. Regularly test the sensitivity of the light sensor to ensure that it automatically turns on the LED light when the light becomes dim and turns off when the light becomes bright. If the light sensor fails, it should be replaced in time to ensure the Stud works intelligently.



High Traffic Area Special Maintenance



In areas with high traffic flow and heavy vehicles, the Studs are subjected to more wear and pressure and require more frequent inspection and maintenance. According to the actual traffic situation, shorten the inspection cycle appropriately, and deal with severely worn or damaged road studs in time to ensure road safety.



Although small, road Studs play an irreplaceable and important role in enhancing road safety. From enhancing visibility, dividing lanes, managing speed, to indicating danger and guiding traffic, road studs ensure road safety in all aspects. Different types of road studs have their own advantages and are suitable for different road scenarios. With the continuous progress of technology, the performance and function of road studs will continue to be optimized, and they are expected to play a greater role in the future in the fields of intelligent transportation and autonomous driving. Therefore, we should attach great importance to the application and maintenance of road studs, give full play to its value in road safety, and create a safer and more reliable traffic environment for people's travel.
